GPA 1000 XS

The new GPA 1000 XS model is lighter and more compact as the previous model GPA 1000 V16. Furthermore it offers the following advantages:

Both electronic units of GPA 1000 and GOLD SCAN III are built-in.
Two different KTS-programs for the GPA 1000 XS (Android)
New GOLD SCAN III metal discrimination with different colors for gold, copper, aluminium and ferro metals.
Touchdisplay for an easier usage, better graphics and data output.
New 400g Universal probe (towards 1200g of previous model) for 10m and 15m search depth, selectable on screen without sensor switch.
Waterproof 30 x 30 cm (12″) GOLD SCAN III coil for greater search performance and comfort in favor of durable searches.

GPA 1000 XS is offered in a set and uses the high depth performance of the GPA technology for professional gold prospecting, treasure hunting and ground scanning.

The GPA 1000 XS set is applicable on every soil type. Through precise measuring of soil changes the device finds gold and other metals and locates cavities up to a maximum depth of approx. 15 meters.

Basic data
Operating temperatures	-20°C – 60 °C
Data transmission	Bluetooth®
Suitcase (protection class)	IP protection class 67
Total weight (package)	12,3 KG
Dimensions package (H x W x D)	37 cm x 62 cm x 39 cm

Electronic unit
Dimensions (H x W x D)	11,2 cm x 17 cm x 6 cm
Weight	700 grams
Processor speed	20 MHz
Display	TFT touch Display
Bluetooth®	Class 2 (10 meters)
Search methods	GPA and PI
Sampling rate	variable
Measurement resolution	16-bit

Battery pack
Cell type	Lithium ion
Dimensions (H x W x D)	10,2 cm x 8 cm x 3 cm
Weight	260 grams
Operating time	4 – 6 hours
Charging time	max. 90 minutes
Output	14,8 V

XS Universal probe
Sensor type	Multisensor
Ground compensation	Yes
Dimensions (H x W x D)	11,5 cm x 54,6 cm x 3 cm
Weight	440 grams

30 x 30 cm coil
Ground compensation	Yes
Dimensions (H x W x D)	30 cm x 30 cm x 4,8 cm
Weight	610 grams

Hardware:

GPA 1000 XS electronic unit with integrated GOLD SCAN III metal discrimination
GPA XS Universal probe 60cm (24″), telescope bar, armrest and bag
GOLD SCAN III 30 x 30 cm (12″) waterproof coil
Cylindrical coil (waterproof) 5x20cm with 10m cable
1x1m search frame with cable in pipe, 8-fold dismountable (including backpack)
Tablet Computer (Android) with KTS Software inkl. Li-Ion Battery
2 external battery packs (cable included)
Quick charger 220 Volt incl. 110 Volt adapter
Power inverter with car loading cable
Solid hard-top case

Software:

New “GPA-Visualizer” App for Android (already installed on tablet computer)
USB flash drive with pre-installed software for processing data on other computers

Service:

Detailed video manual for assembly, search with display and tablet
English and German user manual
2 years manufacturer’s warranty for the entire scope of delivery (incl. hardware and software)

3D Ground Scan
Multisensor technology for maximal depth penetration
Sturdy aluminium housing with Touch display
Built in PI metal discrimination through Gold Scan III
3D Visualisation App
Live Mode detection
Wireless Bluetooth connection
XS Universal probe 60 cm included
External battery pack (2.- pc., rechargeable)
Waterproof search coils
Tablet computer included
Speaker
External GPS available on demand

Benutzerhandbuch

Users Manual

Locates

Gold deposits, like gold reefs and gold belts
Natural gold and gold ore
Buried treasures
Gold Nuggets
Metal objects
Cavities and voids like tunnels, tombs, caves and graves
Water etc.

Reviews

5 Stars out of 6 Reviews

Maximum search depth

15 meters

Export price

8.700 €

REQUEST A QUOTE

Due to precise measurement of soil changes the GPA 1000 XS set enables the:

Identification of gold, precious metals, cavities, ancient treasures
Determination of size and shape of the findings
Presentation in 2D and 3D on screen,
Transmission of wireless data transfer to tablet computer through Bluetooth®

The GPA 1000 XS is a professional ground scanner, which is developed and produced only by KTS-Electronic GmbH & Co. KG in Germany. With a maximum search performance of approx. 15 meters (approx. 49 feet) GPA 1000 XS outmatches other gold detectors and professional metal detectors with their outdated technology and limited potential by far.

The device’s excellent search performance is reached through newly developed XS probes, which are equipped with sensitive high performance sensors and a microprocessor-controlled earth’s magnetic field compensation. As a result the GPA search system marks the present state-of-the-art and is useable also on highly mineralised soil and rocky ground.

The GPA 1000 XS is easy to control trough the touch display and can be operated without prior knowledge. The current version is provided with only one ON-/OFF-button. After power up the display immediately shows all relevant informations.

Electronic unit

Equipped with an integrated touch display the unit delivers data of battery status, provides information on compensation and shows the sensor value. The data is automatically digitized and will be transformed wirelessly via Bluetooth® to the tablet computer. Without the necessity of further settings the calibration is conducted by a microprocessor and will be carried out automatically on every soil. The GPA 1000 XS therefore is applicable on every soil type. The electric power supply (operating time approx. 4 to maximum 6 hours) is guaranteed through two exchangeable 2900 mAh Li-ion batteries. Through the provided quick-charger the battery is fully charged within 90 minutes. An external car charging cable for the connection to your car’s cigarette lighter (socket) is part of the equipment as well as an additional 110 Volt adapter, beside 220 V.

Metal discrimination

The GPA 1000 XS electronic unit contains the GOLD SCAN III gold detector, which also is newly developed. The device comes with a 30 x 30 cm (12″) search coil. The gold detector GOLD SCAN III discriminates gold from other metals and indicates the scanned metal type on the display, like gold, copper, aluminium and ferrous metal.

GPA 1000 XS Software

GPA Visualizer 2D representation

Among the KTS 3D software, the GPA 1000 XS is additionally equipped with the new “GPA Visualizer” 3D software. This Apps can be operated with a few easy commands.

The search starts by pressing the start button and the choice of three various speeds. The search can be interrupted anytime through the stop button. A re-start is possible by touching the start button. The search can be completed when pressing the end button. Press on “3D” and the 2D picture is changed into 3D.

3D representation

During measurement

4 different metal kind indications

Universal probe

The GPA 1000 XS set includes the new compact 60 cm (24″) GPA XS universal probe. In order to measure smallest changes in the ground, the probe is equipped with high-sensitivity sensors and an automatic calibration. The probes weighs approx. 400g and are connected to a carbon telescope bar, which easily is adjustable in length.

30 x 30 cm searchcoil (12″)

The waterproof coil (30 x 30 cm) is applicable for the location of particularly small metals as well as large objects. There is no need for additional adjustments.

1x1m search frame

The new 1 x 1 m search frame is contained only in the GPA 3000 set and is produced with an internal cable. Large areas are scanned quickly and effortlessly. The search frame is suitable for the deep scanning after medium-sized and big objects and with the aid of shoulder straps it can be carried from 1 to 2 persons. It is made of plastic pipes and is demountable into 4 pieces. The demounted frame is delivered in the attached bag and can be transported easily.

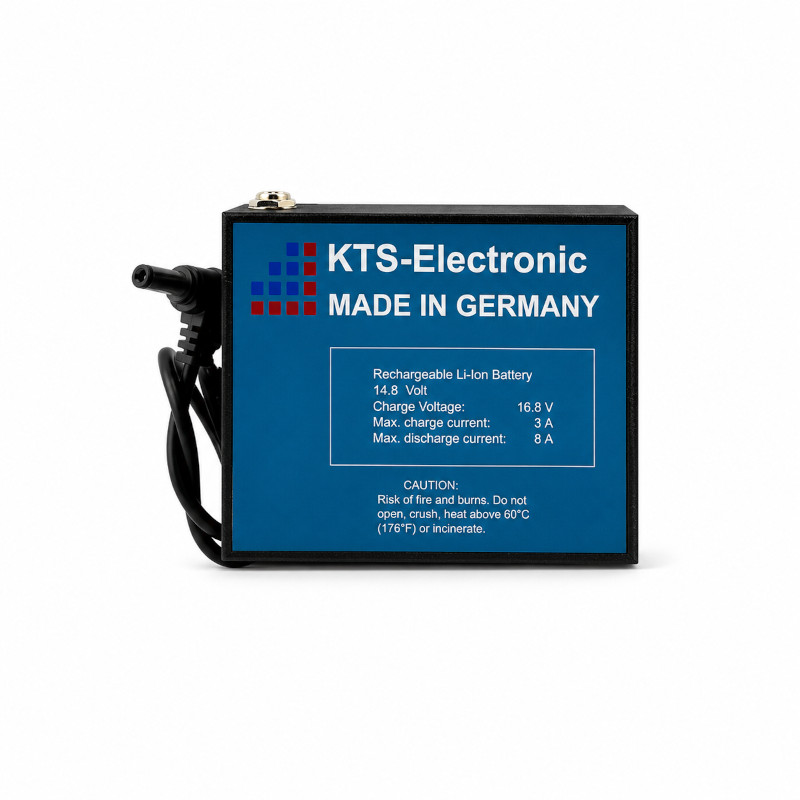

Battery pack

Two new external battery packs with an operation time of 4 to 6 hours and cable are included. Battery pack can be easily attached to the backside of the electronic unit.

Rechargable Li-Ion battery pack data:

Volts of direct current: 14,8 Vdc
Charge voltage: 16,8 Volt
Max. charge current: 3 Ampere
Max. discharge current: 8 Ampere
Capacity: 2900 mAh
